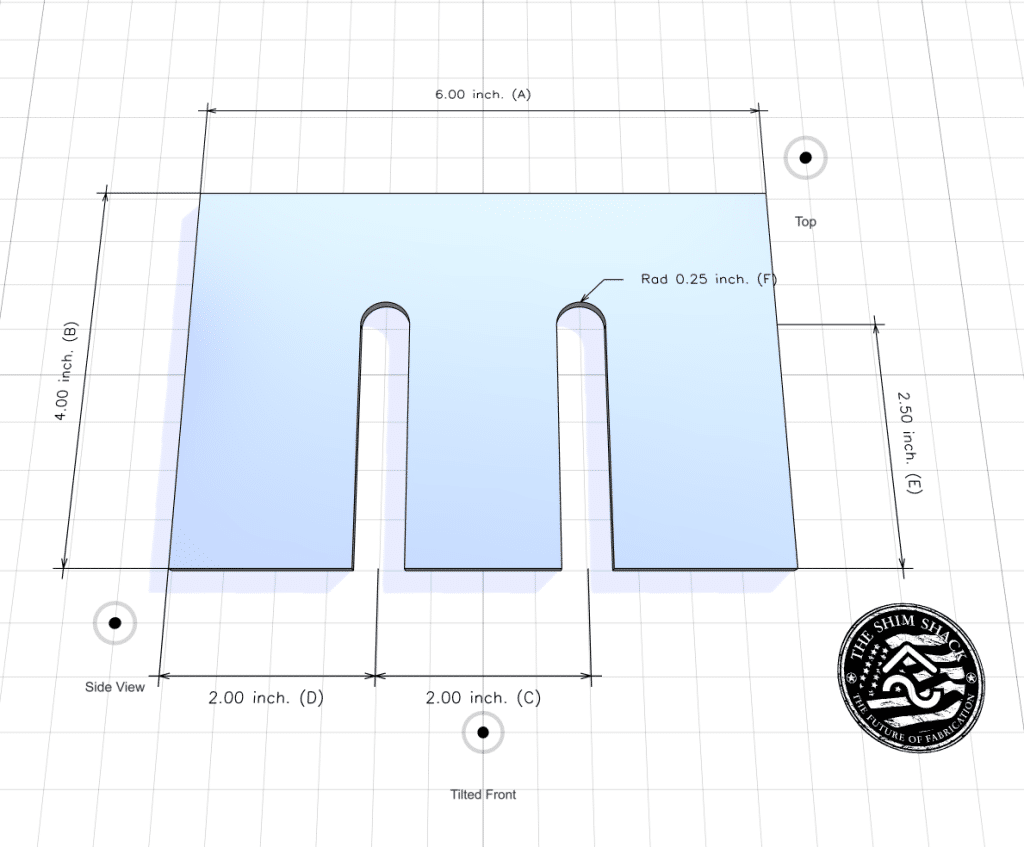

Slotted Flat Metal Shim Gasket: Dual Slot Design
This custom slotted metal spacer shim is designed for precise alignment, spacing, and load leveling in assemblies where fine adjustment and repeatability are critical.
This shim allows for easy installation over existing fasteners without fully disassembling equipment.
Key Features & Design Benefits
Dual Slotted Openings
Allows the shim to slide into position around bolts or studs.
Radiused Slot Ends
Reduce stress concentration and improve durability.
Custom Dimensions
And materials available to meet application specific requirements.
Common Applications
• Equipment, machinery, and pinion alignment.
• Leveling base plates, frames, or mounting surfaces.
• Adjusting component height or spacing during installation.
• Correcting misalignment caused by wear, settling, or vibration.
• Maintenance, repair, and retrofit projects.
Common Industries
• Manufacturing & Industrial Equipment
• Automation & Robotics
• OEM Machinery
• Agricultural Equipment
• Automotive
• Maintenance, Repair & Operations (MRO)
