Dual-Slot Alignment Shim Gasket

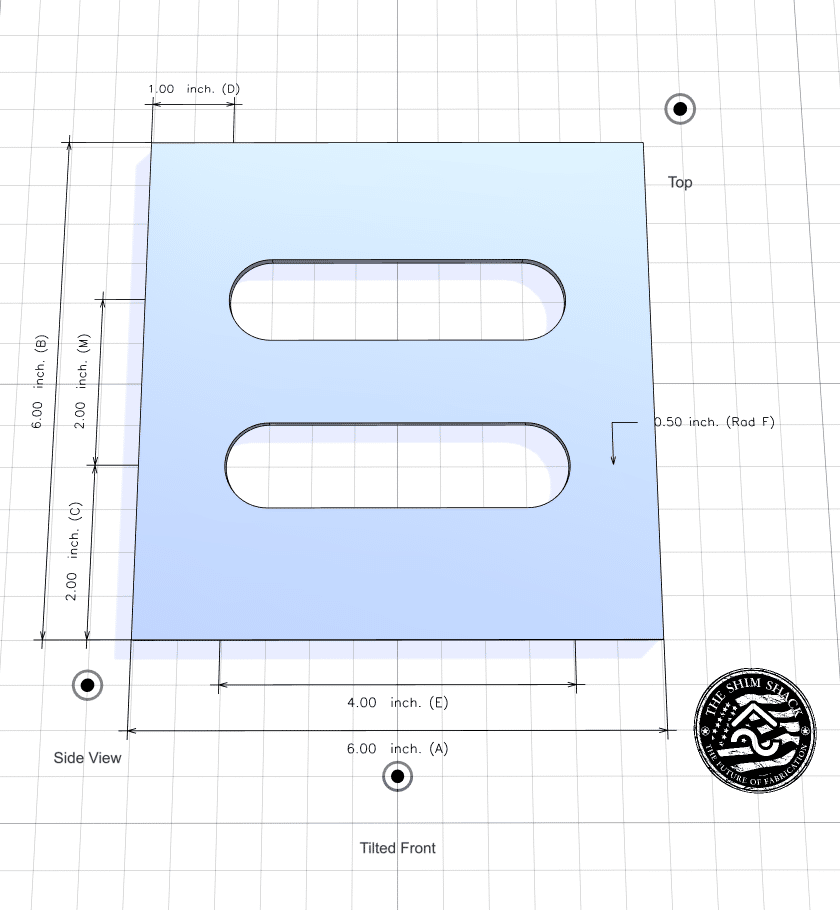

The SMD-2637 Dual-Slot Flat Metal Shim is a precision-cut alignment spacer shim designed for applications requiring increased adjustability, secure clamping, and controlled spacing across multiple fasteners. Featuring two elongated, radiused slots, this shim allows independent or simultaneous adjustment of multiple mounting points while maintaining a flat, stable load-bearing surface.
Its dual-slot configuration makes it ideal for wider brackets, rails, and mounting plates where alignment flexibility is critical.
Key Features & Design Benefits
Elongated Slots
Allows fasteners to slide during installation, making fine alignment possible.
Flat Geometry
Designed to maintain flatness and thickness consistency.
Custom Dimensions
And materials available to meet application specific requirements.
Common Applications
• Adjustable mounting plates and brackets.
• Machinery and equipment alignment.
• Rail and guide system positioning.
• Fixture and jig setup.
• Maintenance, repair, and setup operations.
Common Industries
• Manufacturing & Industrial Equipment
• Automation & Robotics
• OEM Machinery
• Agricultural Equipment
• Construction & Structural Fabrication
• Maintenance, Repair & Operations (MRO)
