Multi-Hole Alignment Shim Gasket

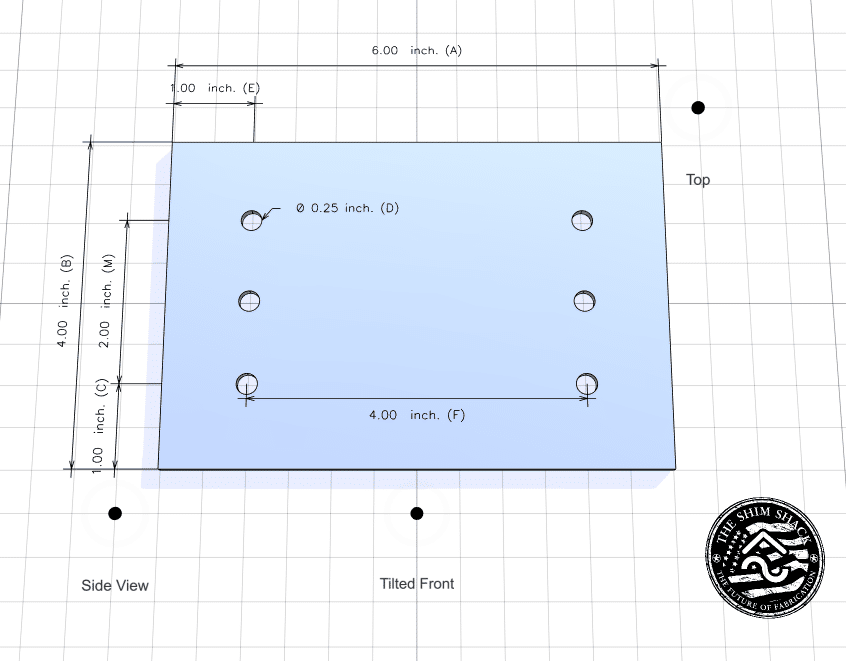

The SMD-6329 Flat Metal Alignment Shim is a precision-cut spacer shim designed for applications requiring multiple fastening points, consistent spacing, and reliable alignment. Featuring six clearance holes arranged across a rectangular profile, this shim provides secure attachment while maintaining a flat, stable load-bearing surface.
Its multi-hole configuration makes it ideal for assemblies where load distribution, fastening stability, and repeatable alignment are critical.
Key Features & Design Benefits
Multiple Clearance Holes
Allows fasteners to slide during installation, making fine alignment possible.
Rectangular Profile
Provides consistent surface contact and helps prevent distortion during installation.
Custom Dimensions
And materials available to meet application specific requirements.
Common Applications
• Bracket and frame mounting.
• Machinery and equipment alignment.
• Structural spacing and leveling.
• Base plate installation.
• Maintenance, repair, and setup operations.
Common Industries
• Manufacturing & Industrial Equipment
• Automation & Robotics
• OEM Machinery
• Agricultural Equipment
• Construction & Structural Fabrication
• Maintenance, Repair & Operations (MRO)
