Slotted Flat Alignment Shim Gasket

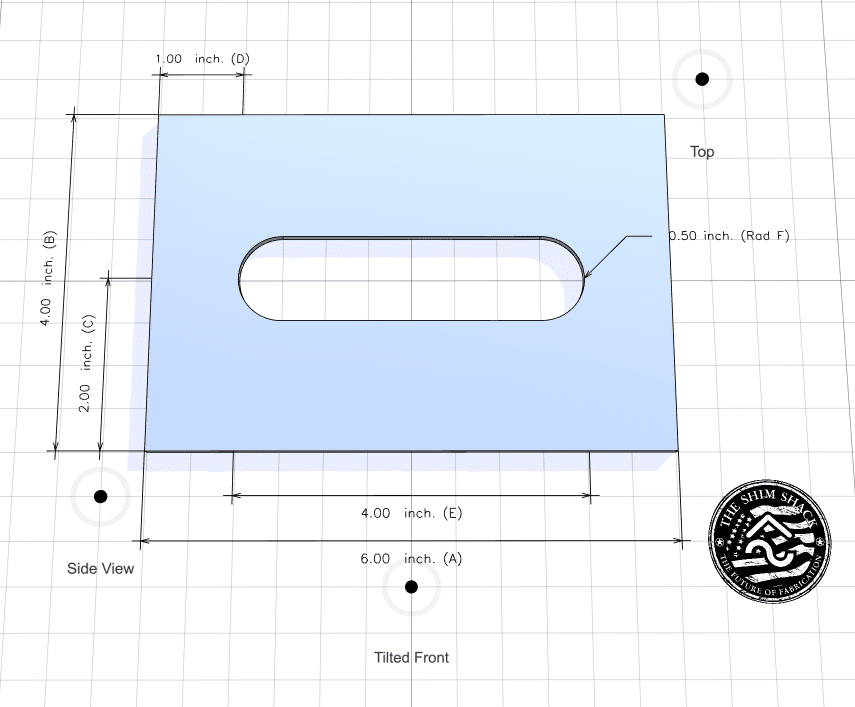

The SMD-2636 Slotted Flat Metal Shim is a precision-cut alignment spacer shim designed for applications requiring adjustable positioning, controlled spacing, and secure clamping. Featuring an elongated slot with radiused ends, this shim allows for fine alignment adjustments while maintaining a flat, stable load-bearing surface.
Its simple, versatile geometry makes it ideal for machinery setup, fixture alignment, and maintenance-driven adjustments where flexibility is required.
Key Features & Design Benefits
Elongated Slot
Allows fasteners to slide during installation, making fine alignment possible.
Flat Geometry
Designed to maintain flatness and thickness consistency.
Custom Dimensions
And materials available to meet application specific requirements.
Common Applications
• Machinery and equipment alignment.
• Fixture and jig positioning.
• Adjustable mounting brackets.
• Base plate leveling and spacing.
• Maintenance, repair, and setup operations.
Common Industries
• Manufacturing & Industrial Equipment
• Automation & Robotics
• OEM Machinery
• Agricultural Equipment
• Construction & Structural Fabrication
• Maintenance, Repair & Operations (MRO)
