Precision Alignment Gasket Shim with Four-Hole Pattern

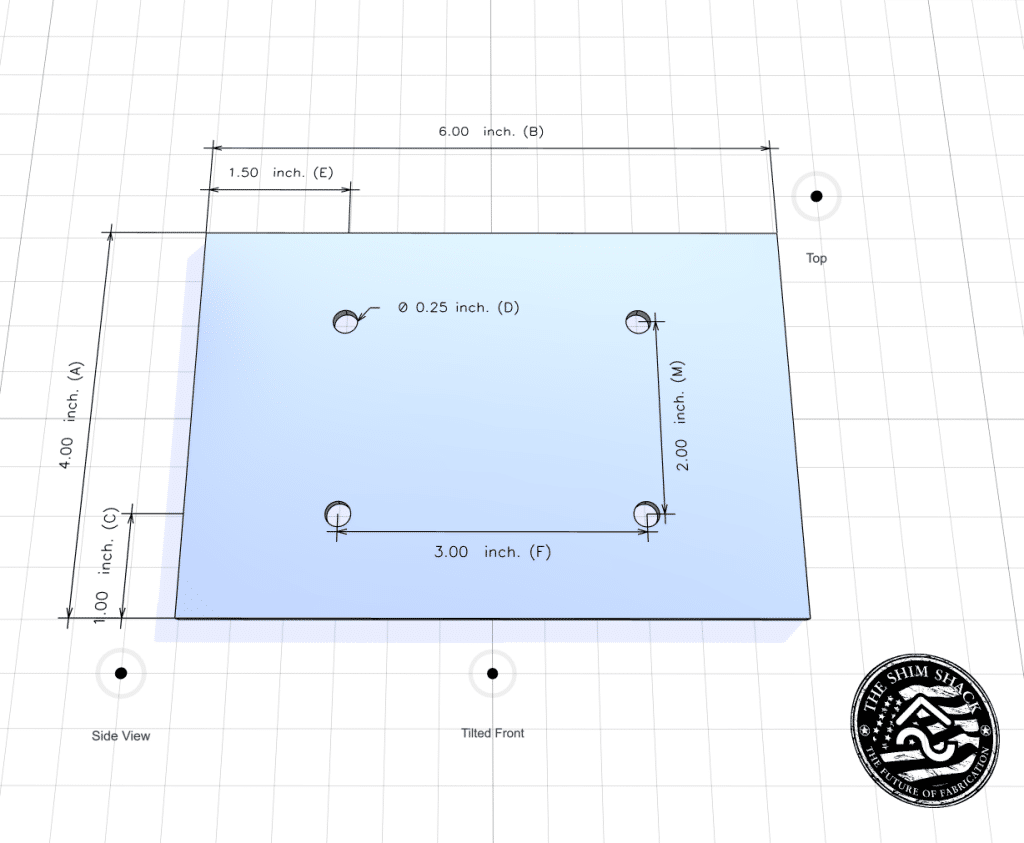

The SMD-2096 Slotted Flat Metal Shim is designed for accurate alignment, spacing, and load distribution in bolted assemblies. With a rectangular profile and a four-hole mounting pattern, this shim is ideal for applications where repeatable positioning and secure fastening are required without compromising adjustability.
Its fixed hole pattern allows for precise positioning during initial installation and ensures alignment remains stable over time.
Key Features & Design Benefits
Precision Holes
Allows for consistent bolt alignment and secure mounting.
Tight Tolerance
For dependable, repeatable results.
Custom Dimensions
And materials available to meet application specific requirements.
Common Applications
• Machinery and equipment mounting.
• Base plate and frame alignment.
• Conveyor and material handling systems.
• Structural support and spacing adjustments.
• Preventative maintenance and MRO projects.
Common Industries
• Manufacturing & Industrial Equipment
• Automation & Robotics
• OEM Machinery
• Agricultural Equipment
• Construction & Structural Fabrication
• Maintenance, Repair & Operations (MRO)
